Wire Ropes in Mining: A Complete Guide to Types, Strength, Safety & Maintenance
Wire ropes are the backbone of mining operations — providing critical support for hoisting ore, transporting personnel and equipment, hauling loads, and ensuring structural stability in challenging underground and surface environments.
Why Wire Ropes Are Essential in Mining
Since their invention in the 1830s by German engineer Wilhelm Albert for mine hoisting, wire ropes have transformed mining safety and productivity. They excel under extreme tensile loads, repeated bending, abrasion, corrosion, and shock in shafts, inclines, draglines, shovels, and conveyors.
Advantages include:
- High strength-to-weight ratio
- Excellent flexibility and fatigue resistance
- Superior performance over chains or synthetic ropes in heavy-duty mining
Common Wire Rope Constructions Used in Mining

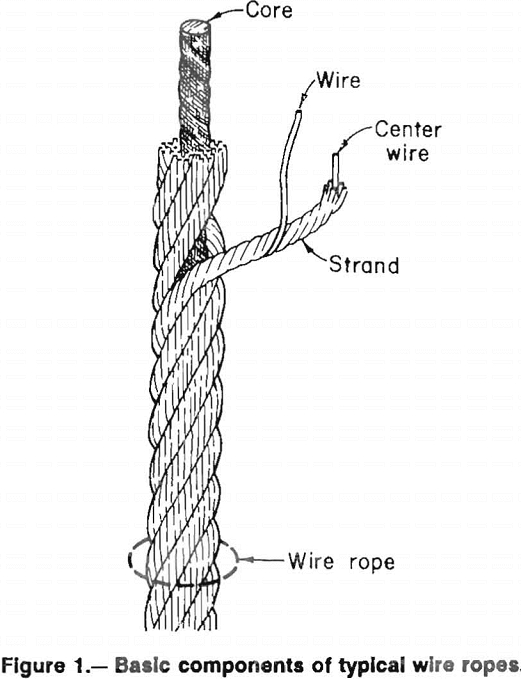

A wire rope comprises wires twisted into strands, strands laid around a core. Mining applications demand specific designs for load, depth, bending, and environment.
Popular constructions include:
- 6x19 Class (e.g., Seale, Warrington) — Balanced abrasion resistance + flexibility. Good for general hoisting with moderate bending.
- 6x36 Class — More wires per strand → superior fatigue resistance. Ideal for deep shafts, frequent sheave bending, elevators.
- Triangular/Flattened Strand Ropes — Excellent stability, low torque, crush resistance on multi-layer drums. Common in drum winders and friction hoists.
- Rotation-Resistant Ropes (e.g., 19x7, 35x7, compacted like CASAR Turboplast) — Prevent spinning/load imbalance in multi-rope friction winders or depths >1000 m.
- 8-Strand Ropes (e.g., TUF-MAX, PowerMax) — Enhanced fatigue/abrasion resistance, often with polymer (PFV) for internal wear reduction. Used in shovels/draglines.
Core Types:
- Fiber Core (FC) — Cushioning, but lower strength.
- Independent Wire Rope Core (IWRC) — Steel core → higher strength, crush resistance (most common in mining).
- Wire Strand Core (WSC) — Similar to IWRC for specialized uses.
Grades: IPS (Improved Plow Steel), EIPS/XIP (Extra Improved), XXIP (Extra Extra) — higher grades offer greater breaking strength.
Lay Types: Regular lay (crush resistance) or Lang's lay (fatigue/abrasion in harsh conditions). Right regular lay is standard.
Load Capacity, Strength & Safety Factors
Capacity depends on diameter, construction, grade, core. EIPS ropes provide \~15% more strength than IPS.
Safety factors (design factors) typically 5–8 for hoisting (higher for man-riding/personnel). Calculate Working Load Limit (WLL) per ISO 4309, ASTM, or local regs like DGMS (India).
Corrosion Protection in Harsh Mining Environments
Mining involves moisture, acids, salts, dust → corrosion risk. Solutions:
- Galvanized or drawn-galvanized wires
- Polymer-infused (PFV) or compacted strands seal lubrication, block contaminants
- Regular core-penetrating lubrication
Inspection, Maintenance & Discard Criteria
Failures can be catastrophic — regular checks are mandatory.
Inspection Types:
- Daily/Shift: Visual for broken wires, kinks, bird-caging
- Periodic: Measure diameter, count breaks, check corrosion/lubrication
- NDT (Non-Destructive Testing): Electromagnetic/ultrasonic for internal flaws
Common Discard Criteria (per ISO 4309 & similar standards):
- Visible broken wires (number varies by construction/lay length — e.g., 6–12 in one lay for standard ropes)
- Diameter reduction >7–10% (uniform wear/corrosion)
- Local damage: kinking, crushing, bird-caging, core protrusion
- Severe abrasion (>1/3 wire diameter loss)
- Strand fracture, heat/electric damage, pitting corrosion
Maintenance Tips:
- Regular lubrication (focus on core penetration)
- Avoid overloads, shock loads, poor spooling
- Proper storage to prevent kinks
- Digital rope monitoring (sensors for load, stretch, torque)
Follow standards: ISO 4309, ASME B30, DGMS (India) guidelines for mining ropes, manufacturer specs. Train teams rigorously.
Modern Rope Management in Mining
Advanced systems use sensors, MRT (Magnetic Rope Testing), real-time analytics for predictive maintenance — reducing downtime and boosting safety.
Summary: Choose wire ropes based on depth, load, hoist type (drum/friction), environment. Pair with strict inspection/maintenance for safe, reliable performance.
For mining in Nagpur/Maharashtra (coal or metal mines), consult DGMS-approved suppliers/experts for site-specific advice and compliance.
Stay safe — wire ropes are incredibly strong, but never indestructible!
