Liugong 950E Excavator: The Ultimate 50-Ton Heavy-Duty Machine for Mining & Construction in 2026

In the demanding world of mining and heavy construction, the Liugong 950E Excavator stands as a reliable, high-performance solution engineered for maximum productivity and durability. With its powerful Cummins engine, massive bucket capacity, and reinforced structure, this 50-ton class excavator excels in open-pit mining, quarrying, overburden removal, and large-scale earthmoving projects across India, Australia, Africa, and beyond.

Whether you're operating in coal mines in Nagpur or iron ore sites in Odisha, the Liugong 950E delivers exceptional digging power, fuel efficiency, and low cost-per-ton – making it one of the best value-for-money large excavators available today.

Liugong 950E Excavator in action at a mining site – powerful and efficient loading operation

Why Choose the Liugong 950E Excavator for Mining Operations?

The global mining industry faces increasing pressure to improve efficiency, reduce downtime, and lower emissions. The Liugong 950E addresses these challenges head-on with:

• High breakout force for tough rock and overburden
• Advanced load-sensing hydraulics for smooth control and fuel savings
• Reinforced boom, arm, and undercarriage built for abrasive mining environments
• Proven Cummins QSG12 / QSM11 engine technology (depending on region/model variant)
• Versatility for both open-cast and selective mining applications

Mining companies worldwide report faster cycle times, reduced maintenance costs, and higher tonnage moved per shift when using the 950E compared to older or less optimized machines.

Liugong 950E Technical Specifications – Detailed Breakdown

Here are the key specs that make the Liugong 950E a top performer in the 45-50 ton class:

• Operating Weight: 46,500 – 49,800 kg (102,515 – 109,790 lb)
• Engine: Cummins QSG12 / QSM11 Tier 3/4 Final
• Rated Power: 280–298 kW (375–400 hp) @ 2000–2100 rpm
• Max Torque: Up to 2,034 N·m (1,500 lb-ft)
• Bucket Capacity: 2.2 – 3.2 m³ (2.88 – 4.19 yd³)
• Max Digging Depth: 6,521 mm (21 ft 5 in) standard boom
• Max Reach at Ground Level: 10,625 mm (34 ft 10 in)
• Bucket Digging Force: Up to 290 kN (ISO)
• Arm Digging Force: Up to 240–265 kN
• Hydraulic Flow: High-efficiency load-sensing system
• Fuel Tank Capacity: ~650 L for extended shifts
• Track Width Options: 600–900 mm for stability on soft ground

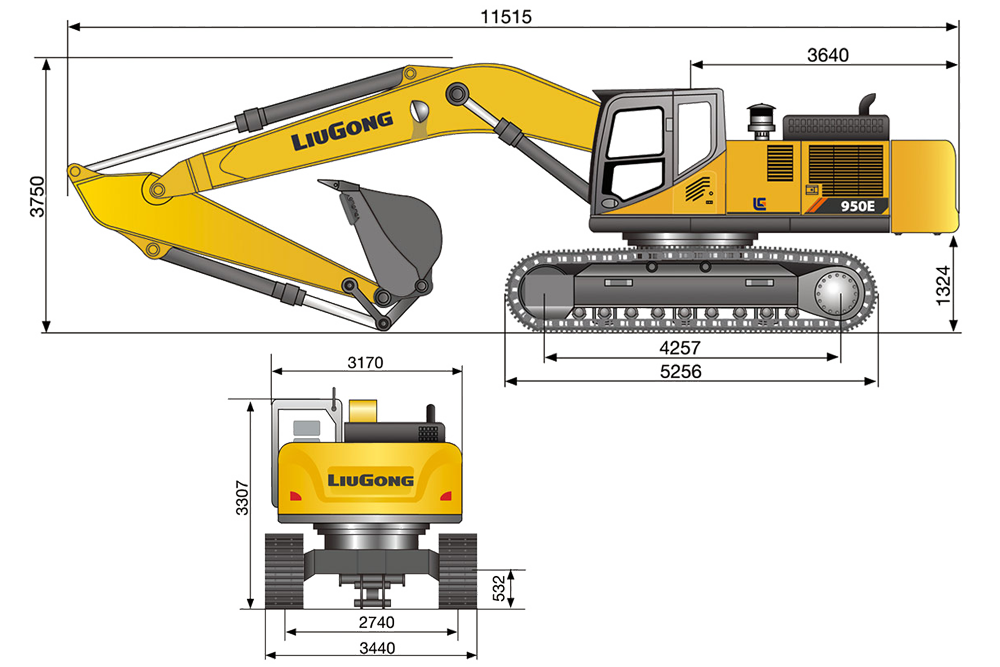

Detailed dimensions and working range diagram of the Liugong 950E Excavator

Working Range Highlights

• Standard Boom: 7,060 mm
• Max Dumping Height: ~9,977 mm
• Level Bottom Dig Depth (2.4 m): Up to 7,715 mm

How to Calculate Liugong 950E Productivity in Mining – Formulas & Example

Accurate productivity estimation helps in fleet planning and cost control. Use this standard formula for hourly production (bank cubic meters per hour):

P = (Bucket Capacity × Fill Factor × Cycles per Hour × Efficiency) / Swell Factor

• Bucket Capacity: 3.2 m³ (mining configuration)
• Fill Factor: 0.90–0.95 for blasted rock/coal
• Cycles per Hour: 3600 / cycle time in seconds
• Efficiency: Typically 0.80–0.85 (real-world conditions)
• Swell Factor: 1.20–1.40 depending on material

Real-World Example: Open-Pit Coal Mine (India)

1. Bucket: 3.2 m³
2. Fill Factor: 0.92
3. Cycle Time: 18 seconds (dig + swing + dump + return)
4. Cycles/hour: 3600 / 18 = 200
5. Efficiency: 83%
6. Effective cycles: 200 × 0.83 ≈ 166
7. Swell Factor: 1.30 (loose coal)
8. Productivity: (3.2 × 0.92 × 166) / 1.30 ≈ 375–400 bank m³/hour

In practice, this translates to loading 70–100 ton haul trucks efficiently, moving 4,500–6,000 tons per 10-hour shift depending on conditions.

Liugong 950E efficiently loading a dump truck in an open-pit coal mining operation

Practical Field Applications: Open-Cast & Underground Mining Examples

Open-Pit Coal Mining (Central India): The 950E handles overburden stripping and coal seam extraction with ease. Its deep digging reach and high breakout force allow quick removal of hard layers, reducing secondary blasting needs. Operators praise its stability on uneven benches and fast truck loading cycles.

Iron Ore / Bauxite Mining (Global): In large-scale operations, the 950E serves as a primary excavator for face shoveling and selective mining. Reinforced components withstand abrasive materials, while intelligent hydraulics optimize power delivery for fuel efficiency.

Liugong 950E operating in an Indian open-cast mine – real field performance

Common Mistakes to Avoid with the Liugong 950E Excavator

• Overfilling the bucket beyond 3.2 m³ – causes hydraulic overload and spillage
• Ignoring dust suppression in dry mining areas – accelerates wear on filters and components
• Skipping daily undercarriage inspections – leads to premature track/roller failure
• Using wrong mode (not switching to Power mode for hard digging)
• Poor operator training – results in 20–30% lower productivity

Performance & Safety Optimization Tips for Maximum ROI

• Use Power mode for hard rock; Economy mode for lighter tasks to save 10–15% fuel
• Implement strict preventive maintenance: Check hydraulics, filters, and grease points every 250 hours
• Fit rock guards, liners, and heavy-duty GET (ground engaging tools) for abrasive mining
• Train operators on auto-idle and ECO features for better fuel economy
• Add 360° cameras, reverse alarms, and proximity sensors for enhanced site safety
• Monitor fuel consumption and cycle times using telematics (if equipped)

Ergonomic operator cabin of the Liugong 950E – excellent visibility and controls for long shifts

Liugong 950E Excavator FAQ – Most Asked Questions

What is the engine power of Liugong 950E?

375–400 hp (280–298 kW) from Cummins QSG12/QSM11 engine.

What is the maximum bucket capacity of Liugong 950E?

Up to 3.2 m³ (4.19 yd³) in heavy-duty mining configuration.

What is the digging depth of Liugong 950E?

Standard maximum digging depth is 6,521 mm (21 ft 5 in).

Is Liugong 950E good for mining?

Yes – it's widely used in open-pit coal, iron ore, and quarry operations globally due to its power, durability, and low cost-per-ton.

How fuel efficient is the Liugong 950E?

Load-sensing hydraulics + efficient Cummins engine deliver good economy; operators report 10–20% savings vs older models in similar applications.

Conclusion: Is the Liugong 950E the Right Excavator for Your Mining Project?

The Liugong 950E Excavator combines brute strength, smart technology, and excellent value – making it a smart choice for modern mining operations in 2026 and beyond. Whether you're scaling up production in India or tackling tough conditions overseas, this machine delivers consistent performance, reduced operating costs, and proven reliability. Invest in the Liugong 950E to move more material, faster, and safer.
